Automotive Configurator MAGICMOTORSPORT FLEX
Country of origin: Italy, warranty period – 24 months
MAGICMOTORSPORT FLEX is an innovative and versatile tool for mechatronics workshops, designed for straightforward automotive software tuning, reprogramming, and modification. This device, featuring an intuitive internet interface, unleashes its full potential, allowing for efficient configuration and modification of various control units: engine, transmission, safety systems, and others found in the vehicle being serviced. Connection occurs directly via the OBD port or through the more advanced Tricore mode. The “Flexbox” module extends capabilities to include BDM, Bootloader, JTAG, and AUD mode programming, and the device automatically detects potential connection or communication errors.
FLEX is adaptable to various vehicle types, including cars, motorcycles, vans, buses, trucks, tractors, industrial vehicles, and boats, allowing you to customize the tool to your needs by selecting appropriate software packages and accessories. Additionally, the MMS HELPDESK platform provides 24/7 technical support from qualified specialists, helping you access the highest level of technology on the market and increase your service’s productivity.
Features:
- Simple Software Tuning and Modification: Allows for easy reprogramming and modification of automotive software.
- Automatic Error Detection: The device is capable of detecting potential connection or communication errors.
- Customization: Ability to choose SW packages (Master / Slave) and accessories according to individual needs and workload.
- MMS HELPDESK Support: Access to 24/7 remote technical support with qualified specialists (chat and ticket assistance).
- Knowledge Base and Services: Unlimited possibilities using the MAGICMOTORSPORT knowledge base and services.
MAGICMOTORSPORT FLEX is applicable to the following vehicles:
- Cars
- Motorcycles
- Vans
- Buses
- Trucks
- Tractors
- Industrial vehicles
- Boats
Connect your vehicles to the most advanced MAGICMOTORSPORT technologies using the various modes offered.
With FLEX, you can efficiently configure and modify all control units: engine, transmission, safety systems, and others present in the vehicle being serviced.
- OBD: Direct connection via the OBD port, supporting ISO 15765 (CAN), ISO 99141-2, ISO 14230 (K/L-LINE), Ethernet, SAE J1850 PWM/VPW, SAE J1708 standards.
- BENCH: Access to OBD on the bench or full backup by reading and writing without opening the control unit, supporting Bosch Tricore engine control units and transmission control units.
- BOOT: Supports various modes, including BDM MPC5xx, Bootloader C167, ST10F2xx, TC17xx, Nexus MPC/SPC 5xxx, JTAG Renesas SH705x, SH72xxx, AUD NEC 76F00xx.
- “Flexbox” module: Designed for advanced repair work, allowing programming in BDM, Bootloader, JTAG, and AUD modes.
Technical Specifications:
- PC connection: USB 2.0
- Power supply: 12V 5A / 24V 2.5 A (power connector 110-240V 14V 5A included in the kit)
- Protection features: ESD 1kV, overvoltage, overload, overheating, polarity protection, USB galvanic isolation.
- Universal connectors: 15 In/Out connectors.
- Voltages: Internal 3.3V-5V, external 1.8V – 5.5V.
- Supported programming protocols: JTAG, BDM, AUD, UART.
- LED indicators: Operation, data transfer, error indication.
Communication connections (OBD):
- ISO 15765: 2 x CAN
- ISO 99141-2 & ISO 14230: 2 x K-LINE, 1 x L-LINE
- Ethernet
- SAE J1850 PWM, VPW
- SAE J1708
Available SW Packages (purchased separately):
Master version:
- Software SW Flex Infineon TC17xx/TC2xx/TC3xx Master = 1800.00 Eur + VAT
- Software Flex OBD Bench ECU Master = 2500.00 Eur + VAT
- Software SW Flex TCU OBD + Boot + Bench Master = 1800.00 Eur + VAT
- Software SW Flex Motorola MPC5xx Master = 650.00 Eur + VAT
- Software SW Flex Nexus MPC5xxx Master = 500.00 Eur + VAT
- Software Flex Full software package Master = 5100.00 Eur + VAT
- Software SW Flex Renesas SH7xxxx Master = 500.00 Eur + VAT
- Software SW Flex Siemens C165/166/167 Master = 250.00 Eur + VAT
- Software SW Flex ST10F2xx Master = 250.00 Eur + VAT
- Software SW Flex NEC 76F00xx Master = 500.00 Eur + VAT
- Software SW Flex Bike ECU OBD + Bench + Boot Master = 400.00 Eur + VAT
- Software SW Flex Heavy Duty ECU OBD + Bench + Boot Master = 1800.00 Eur + VAT
Slave version:
- Software SW Flex Infineon TC17xx/TC2xx/TC3xx Slave = 600.00 Eur + VAT
- Software SW Flex ECU (cars, vans, bikes) OBD + Bench Slave = 1000.00 Eur + VAT
- Software SW Flex TCU OBD + Bench + Boot Slave = 800.00 Eur + VAT
- Software SW Flex Motorola MPC5xx Slave = 300.00 Eur + VAT
- Software SW Flex Boot Nexus MPC5xxx Slave = 250.00 Eur + VAT
- Software Full Flex package Slave = 1900.00 Eur + VAT
- Software SW Flex Renesas SH7xxxx Slave = 250.00 Eur + VAT
- Software SW Flex Siemens C165/166/167 Slave = 150.00 Eur + VAT
- Software SW Flex ST10F2xx Slave = 150.00 Eur + VAT
- Software SW Flex NEC 76F00xx Slave = 200.00 Eur + VAT
- Software SW Flex Bike ECU OBD + Bench + Boot Slave = 200.00 Eur + VAT
- Software SW Flex Heavy Duty ECU OBD + Bench + Boot Slave = 800.00 Eur + VAT
Optional Accessories (purchased separately):
- FLEX branded suitcase – FLX8.30
- MAGBench V3 universal kit – FLK08
- Challenger connector – MAGP0.3.23
- Toyota Denso JTAG soldering connector – FLX4.3
Kit Contents:

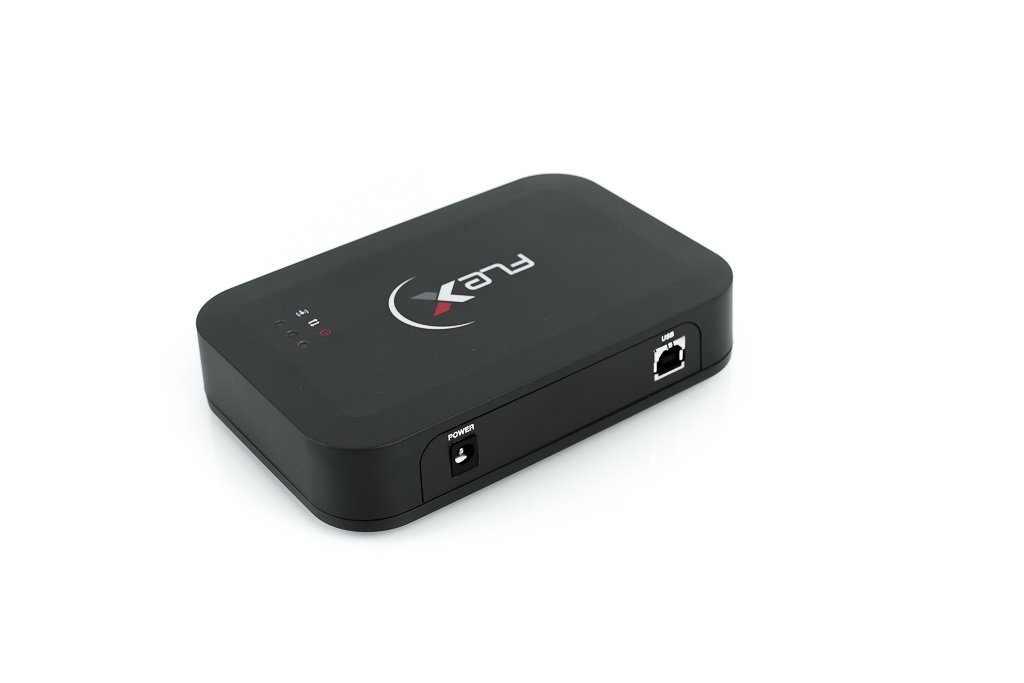

- FLX1.1 – FLEX base module

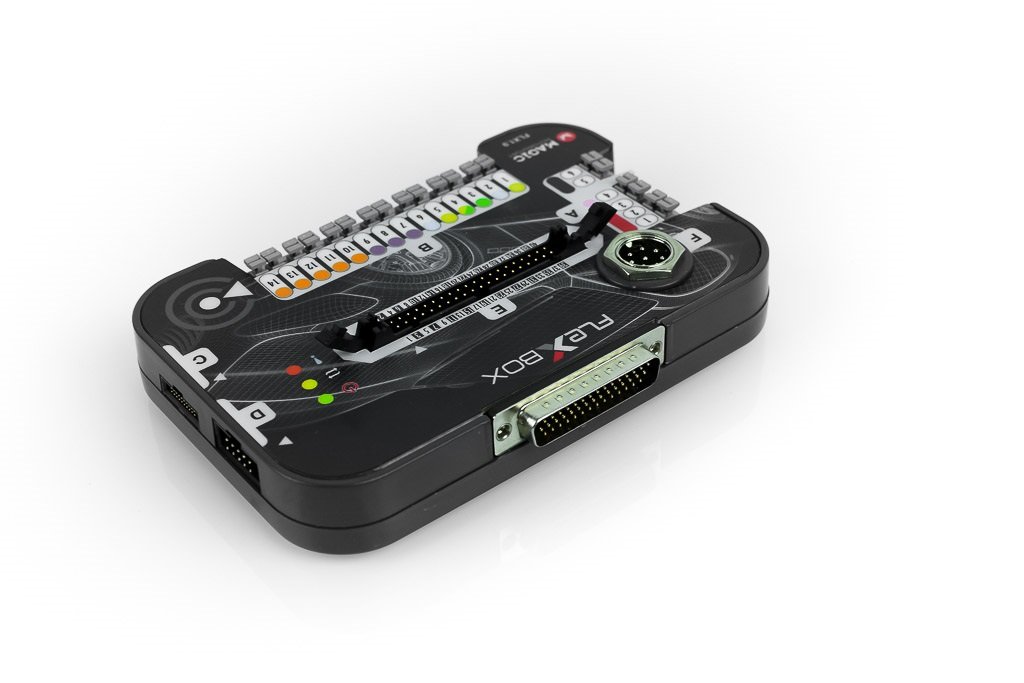

- FLX1.9 – FlexBox module
- FLX2.10 – OBD connection cable: FLEX to CAN/Kline RED
- FLX2.11 – OBD connection cable: FLEX to ENet GREEN
- FLX3.9 – PC connection: USB 2.0 AM-BM BLK 1.8m
- FLX4.9 – Power connector 110-240V 14V 5A

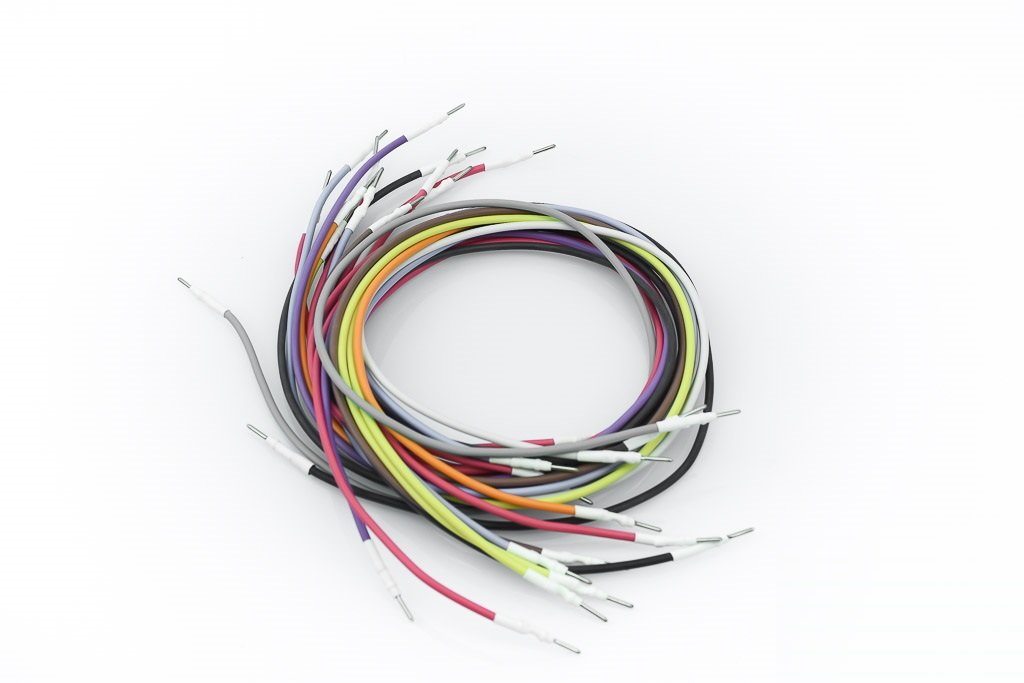

- FLK35 – Cable set: FLX3.5
- FLK42 – Adapter set: 6 pcs contacts with adapter kit FLX4.
- FLX3.3 – Connection cable: FlexBox port C to NEC 7F00 XX
- FLX3.4 – Connection cable FlexBox port D to BDM MPC5xx
- FLX4.1 – FlexBox port E 40 pins adapters for FLX3.5
- FLX9.1 – Flex & FlexBox diagnostic adapter
