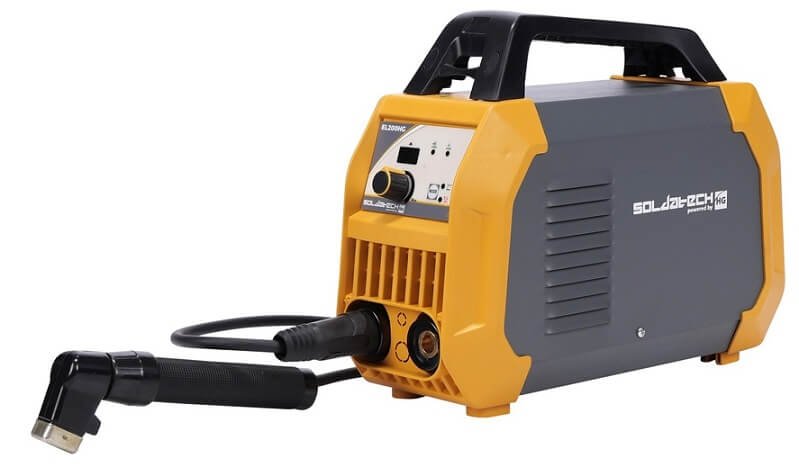

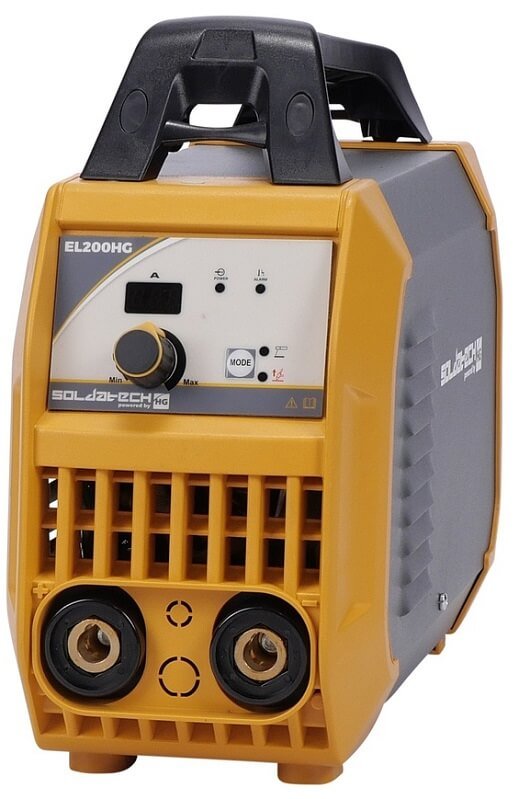

Inverter electrode welding machine 200A Valkenpower
Country of origin: Netherlands, warranty period – 24 months
By registering the equipment on the website www.soldatech-welding.com, you can extend the warranty period up to 5 years.
The inverter electrode welding machine 200A is a lightweight, compact, and portable welding device designed for welding black metal, stainless steel, and low-alloy steel using MMA (electrode) and TIG methods. Thanks to advanced IGBT inverter technology, it ensures higher efficiency and durability. The device features hot-start, anti-stick, and ARC force functions, which make work easier and ensure high-quality welding even under challenging conditions. The integrated cooling system and overheating protection allow for continuous use without interruptions.
Functions:
- MMA (electrode) and Lift TIG welding
- Hot-start function
- Anti-stick function
- ARC force function
- Integrated overheating protection and cooling fan
- Suitable for rutile (E 6013) and basic (E 7018) electrodes
- Modern IGBT inverter technology
Technical specifications:
- Input voltage: 230 V, 1 phase
- Frequency: 50/60 Hz
- Circuit breaker: 16A C type
- Input power: 8.8 kVA
- No-load voltage: 82 V
- Duty cycle at 20°C: 40% – 200 A
- Duty cycle at 40°C: 15% – 200 A
- Welding current range: MMA 41–200 A / TIG 15–200 A
- Electrode diameter: 1.6 – 4.0 mm
- Protection class: IP21S
Product dimensions:
- Length: 400 mm
- Width: 154 mm
- Height: 300 mm
- Weight: 5.8 kg
Package dimensions:
- Length: 530 mm
- Width: 185 mm
- Height: 415 mm
- Weight: 10.60 kg
Scope of delivery:

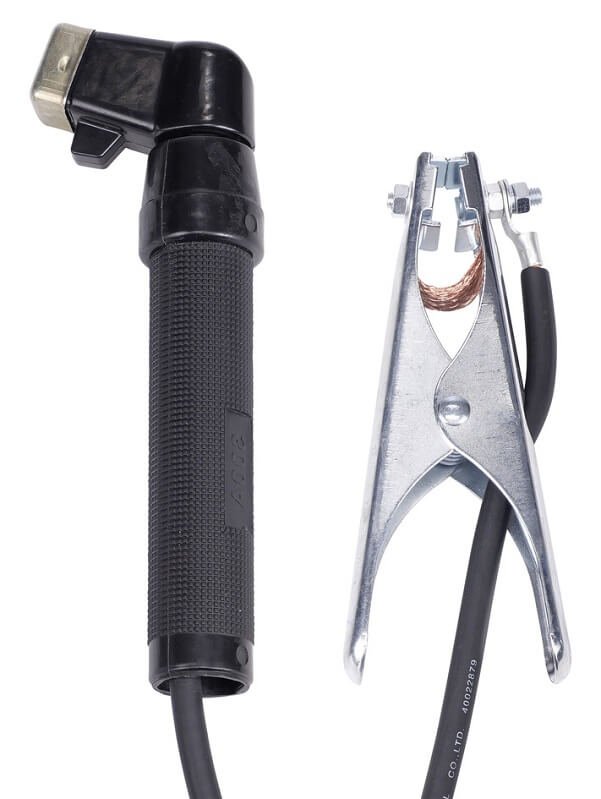

- Twistlock electrode holder with 3 m 16 mm² cable
- Ground clamp with 2 m 16 mm² cable
- Power cable 2 m (3×2.5 mm²)
- 13 mm European-style dinse connectors
- Durable transport case
